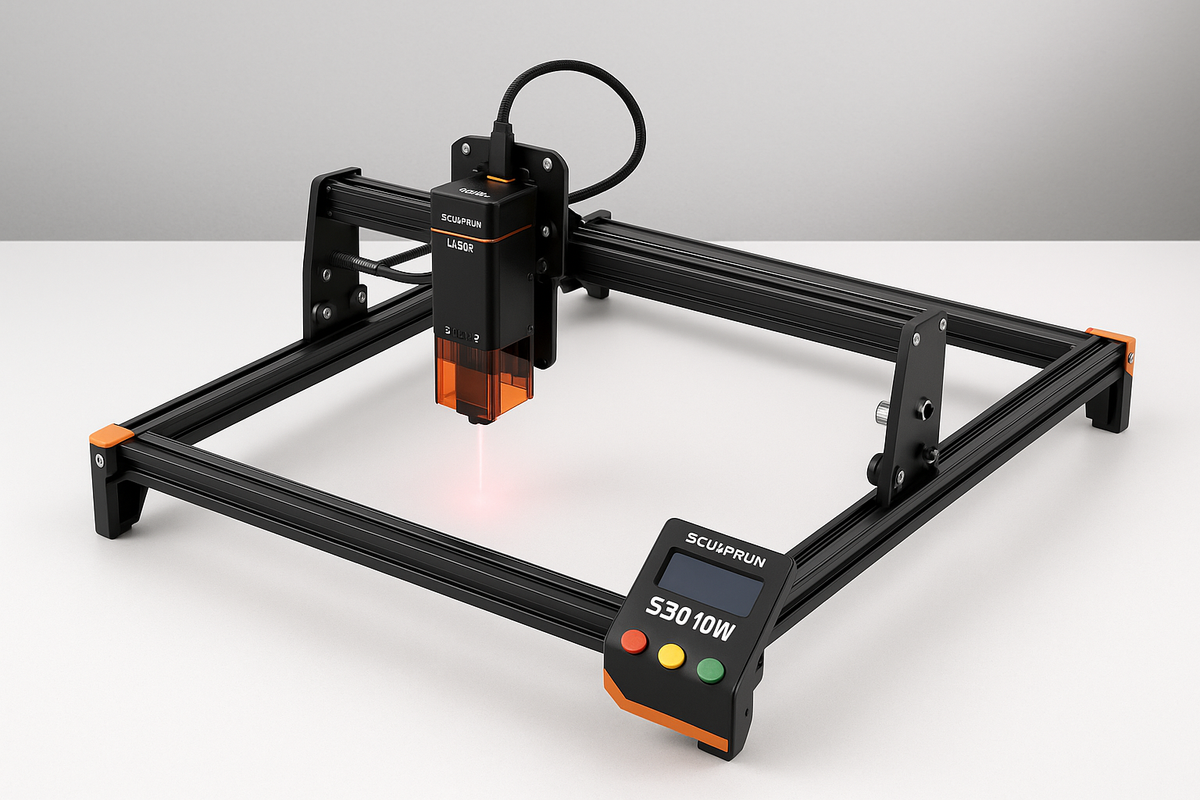

SCULPFUN S30 Pro 10W Laser Engraving & Cutting Machine with Automatic Air Assist – High Precision DIY Engraver

The SCULPFUN S30 Pro is a 10W optical-output diode laser engraving and cutting machine with automatic air assist. It is designed for detailed DIY work, personalised products and small-workshop production.

Key Features

• 10W Optical Laser Output: Dual-diode technology provides useful cutting and engraving power for compatible materials.
• Automatic Air Assist: Mainboard-controlled 12V air pump with a listed 30L/min flow helps clear smoke and debris from the cutting path.
• Fine Laser Spot: Existing specification lists approximately 0.06 x 0.08mm focus size.
• Rigid Metal Frame: Aluminium-alloy construction supports stable, accurate movement.
• Easy Focusing: Fixed-focus column and sliding device simplify adjustment for different material thicknesses.
• Software Compatibility: Supports LightBurn, LaserGRBL and other compatible GRBL software on Windows, Linux and Mac systems.

Cutting & Engraving

The existing listing references cutting performance up to approximately 10mm wood, 5mm black acrylic and 6mm plywood under suitable conditions. Actual results depend on material composition, focus, air assist, speed and number of passes.

Specifications

• Optical Output: 10W
• Laser Wavelength: 455 ± 5nm
• Laser Focus: Approximately 0.06 x 0.08mm
• Engraving Accuracy: Existing specification lists 0.005mm
• Machine Power: Approximately 84W
• Air Pump: 12V, mainboard controlled, approximately 30L/min
• Power Input: 100–240V AC, 50/60Hz
• Power Output: 12V 7A

Compatible Materials

Existing specifications list suitable wood, MDF, cardboard, leather, acrylic, selected plastics, PCB board, anodised / coated aluminium, 304 stainless steel, ceramic and dark stone depending on whether the project is engraving or cutting.

What's in the Box

• 1 x S30 Pro Laser
• 1 x Laser Repair Kit
• 1 x 12V Automatic Air Pump
• 3 x A4 3mm Wooden Boards
• 2 x Limit Switches
• 1 x 12V 5A Power Adapter
• 1 x Power Cord
• 1 x USB Cable
• 1 x Air Tube
• 1 x Installation Tool Kit
• 1 x Laser Goggles
• 1 x A4 Metal Backing Plate
• 1 x Manual
• 1 x X-Axis Assembly
• 2 x X Profiles
• 2 x Y Profiles
• 1 x Control Box Assembly
• 3 x Support Feet

Laser Safety

Use appropriate laser eye protection, ventilation and a fire-safe work area. Never leave an operating laser engraver unattended and follow the manufacturer's safety guidance for each material.
