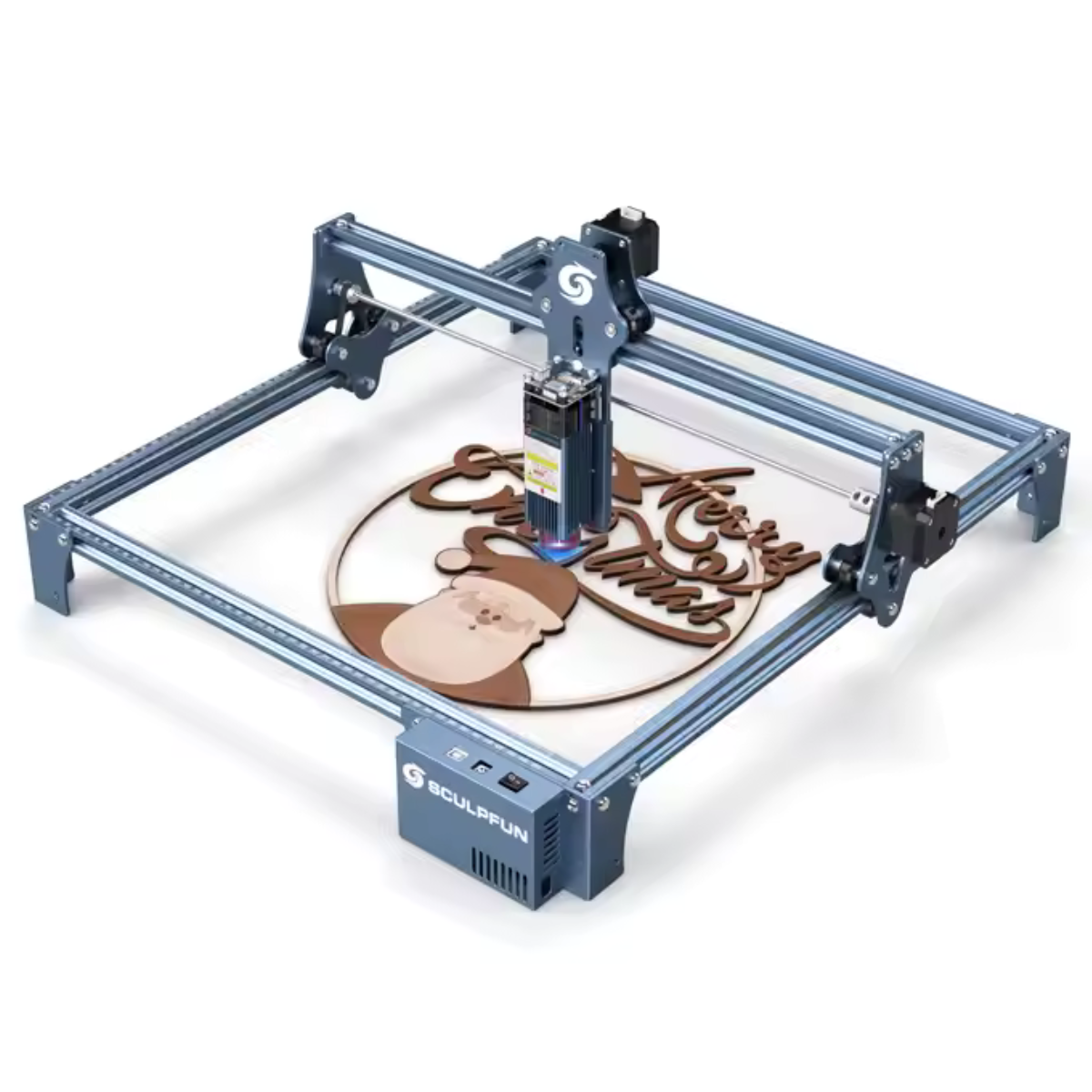

SCULPFUN S9 5.5W Professional Diode desktop laser engraving machine for wood High quality mini DIY laser engraver

The SCULPFUN S9 is a 5.5W optical-output diode laser engraver with a large working area, fine-focus beam and compatibility with popular GRBL laser software. It is suitable for hobby engraving, personalised products and small-workshop projects.

Key Features

• 5.5W Optical Laser Output: Designed for detailed engraving and light cutting on compatible materials.
• Fine Laser Spot: Existing product information lists approximately 0.06mm beam size for detailed work.
• Large Work Area: Approximately 410 x 420mm.
• Stable Aluminium Frame: Rigid construction helps reduce vibration while engraving.
• Manual Focus: Sliding adjustment system allows focus changes for different material thicknesses.
• Software Compatibility: Supports LightBurn and LaserGRBL, with Windows and Mac compatibility referenced in the existing listing.
• Laser Shield: Protective shield helps reduce direct glare; appropriate laser safety glasses should still be used.

Cutting Performance

The current product information contains conflicting single-pass cutting claims. For accuracy, cutting depth should be treated as material- and setting-dependent; thicker wood or acrylic may require multiple passes, suitable focus and optional air assist.

Specifications

• Optical Output: 5.5W
• Laser Wavelength: 455 ± 5nm
• Laser Spot: Approximately 0.06mm
• Focusing: Fixed focus with sliding adjustment
• Work Area: Approximately 410 x 420mm
• Supported Formats: Existing listing references BMP, DST, DWG, DXF, DXP, LAS and PLT depending on software

Laser Safety

Use appropriate laser eye protection and adequate ventilation. Operate on a non-combustible surface, keep a suitable fire extinguisher nearby and never leave the laser running unattended.
